Sheet Metal Processes

Quality made to measure – in the field of Sheet Metal Processing we offer modern and highly automated manufacturing options.

70px

Our Spectrum

Punching, lasering and combined facilities (with fully automatic loading and unloading in high-bay systems)
Waterjet cutting
CNC bending (with bending center and/or bending robot)
Intermediate production: Deburring/straightening (machine), press-fitting, drilling, countersinking, thread cutting
Welding: TIG, MAG, MIG, laser robot welding, CNC stud welding, spot welding, certified according to EN 15085
Finishing processes (grinding, polishing, electroplating, wet paint and powder coating, multi-color, pad and screen printing, laser marking)
Mechanical assembly

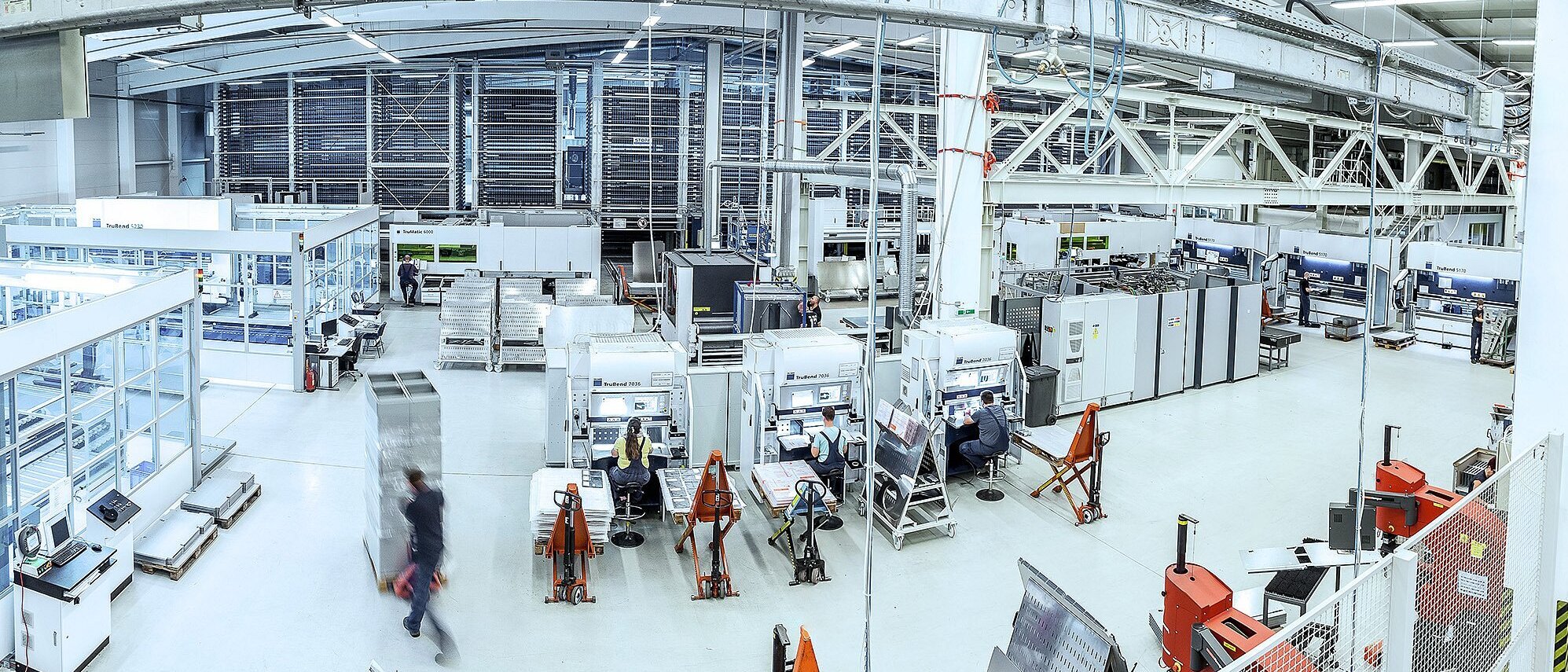

Integrated automatic storage system for large format plates in Szügy, Hungary

Storage places: 908
Sheet large format: 1525 x 3050 mm
Total storage weight: 2724 t
Material: Mild steel, stainless steel, aluminum, copper

Punching or as punch-laser combined technology

Max. sheet thickness: 6.4 mm
Max. workpiece weight: 150 kg
Max. punching force: 180 Nm

CO2 or solid-state laser

Max. laser power: 6000 W
Max. sheet thickness mild steel / stainless steel / aluminum: 25 mm
Max. sheet thickness copper / brass: 10 mm

Bending machine
Pressing force: 360 kN
Bevel length: 1020 mm

Loading station
Number of axes: 4
Repeatability: ±0.01 mm

Bending robot

Number of axes: 6
Repeatability: ±0.035 mm

Bending center

Max. workpiece size: 2795 x 1524 mm
Max. bending length: 2500 mm
Max. bending height: 165 mm
Max. sheet thickness: 2.10 mm at 410 N/mm²

Welding robot, high-accuracy robot and working area

Welding robot
Max. laser power: 4000 W
Beam quality: 8 mm * mrad

High-accuracy robot
Number of axes: 6
Repeatability: ±0.05 mm

Working area
Max. 1600 x 800 x 700 mm
Max. 250 kg

Installation of assemblies, devices, and systems
